IEC 60529 IPX9k Test Equipment SS304 Stainless Steel Material

Brand Name : LIB

Model Number : R9K-1200

Certification : RoHS,CE,IEC60529

Place of Origin : china

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 360 sets / quarter

Delivery Time : 3-14 days

Packaging Details : Export Standard Wooden Box

Application : Buses,Outdoor lighting

Water Spray Angle : 0°,30°,60°,90°

Water Flow Rate : 14L-16L/min

Spray Range : 30° ± 5°(Single hole)

Warranty : 3 years;life-long maintenance,

Water Spray Temperature : ambient ~ 88℃ (Adjustable)

Contact Now

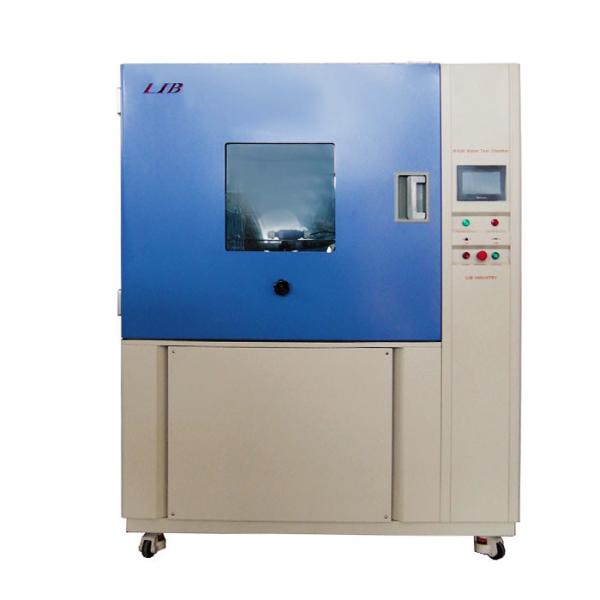

IEC 60529 IPX9k Equipment

Description

IEC 60529 IPX9k equipment is used to verify the protective performance of the Passenger vechiles, buses, lamps, motorcycles and other parts and components under high pressure and temperature water jetting at degree IPX9 (IPX9K)..

●High pressure test

●high temperature test

Technical Specification

Model	R9K-1200
Name	IEC 60529 IPX9k Equipment
Internal dimensions (mm)	100012001000 DWH
Overall dimensions (mm)	1250* 1700* 2050 DWH
Water Spray Temperature	ambient ~ 88℃ (Adjustable)
Water Spray Angle	0°,30°,60°,90°
Spray Nozzle	Four, 30 seconds each position
Spray Range	30° ± 5°(Single hole); Space 100-150mm
Distance from water spraying to specimens	10~15cm
Water Pressure	8000-10000 Kpa (adjustabl)
Water Flow Rate	14L-16L/min
Testing Platform Speed	5 ±1 r.p.m
Test Platform height	200-450mm, adjustable
Test Platform diameters	600mm
Load	≤100kg
Controller	Programmable color LCD touch screen controller
	PC Link with software, RS-232 interface
Pressure meter Alarm function	Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Heater	Nichrome heater
Interior material	SUS304 stainless steel
Exterior material	Steel Plate with protective coating
Power Supply	380V 50HZ, Three-phase five-wire
Operating environment	Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45～85％RH

Characteristic

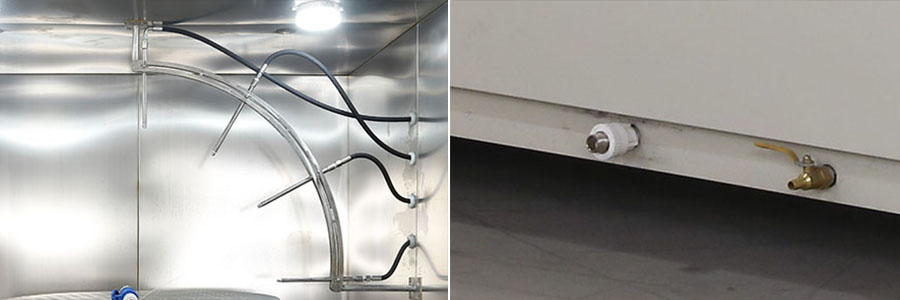

Workroom 90 ° Angle with 4 pieces circular sprayer, Corresponding with standards.	Automatic water intake We are equipped with automatic water intake and water filtration system

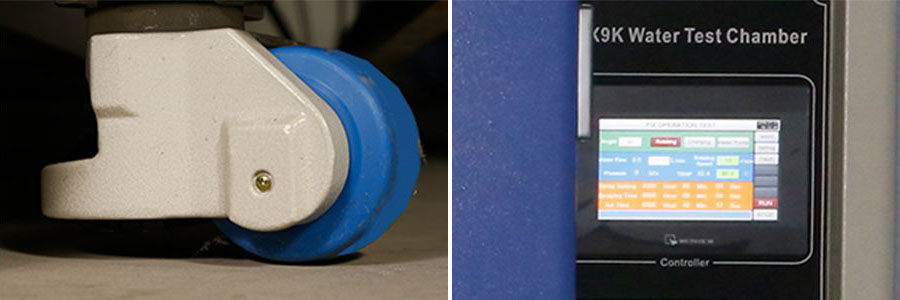

Castor 1000L IPX9K test device equipped with adjustable, lifting and moving casters	Controller Spaying flow,pressure ano temperature are programmable in Controller.

Feature

1. The outer chamber of the ipx9k test chamber is made of high quality stainless steel, and the inner chamber and the turntable are all made of SUS304 stainless steel, which has high corrosion resistance.

2. There are 4 nozzles for the equipment, the nozzle angle is 0°, 30°, 60°, 90°, and the distance is 100-200mm.

3. Color touch screen + Panasonic PLC system, the sample can also be controlled by the system, and the remote control function is added.

4. ipx9k waterproof certified chamber test temperature is up to 80°C, High pressure test

5. ipx9k waterproof chamber equip inside water tank, cycling use of water.
